Full Technical Specifications
| Specification | Details |
|---|---|
| Model | XMPIR02SGXS (Motion Sensor 2S) |
| Detection range | Approx. 7 m |
| Detection angle | Approx. 130° |
| Motion sensitivity | Standard & micro-motion detection |
| Illuminance detection | 0–1000 lux |
| Connectivity | Bluetooth 5.0 (requires Bluetooth®-gateway) |
| Battery | CR2450 coin cell (included) |
| Battery life | Up to ~3 years (based on 1600 triggers & 300 light reports/day) |
| Dimensions | φ32.5 × 69.5 mm |
| Weight | Approx. 19 g |
| Operating temperature | –10 °C to 45 °C |
| Operating humidity | 0–95 % RH (non-condensing) |
| Mount flexibility | Adjustable: 90° vertical, 360° horizontal |
| Package contents | Motion Sensor 2S, user manual |

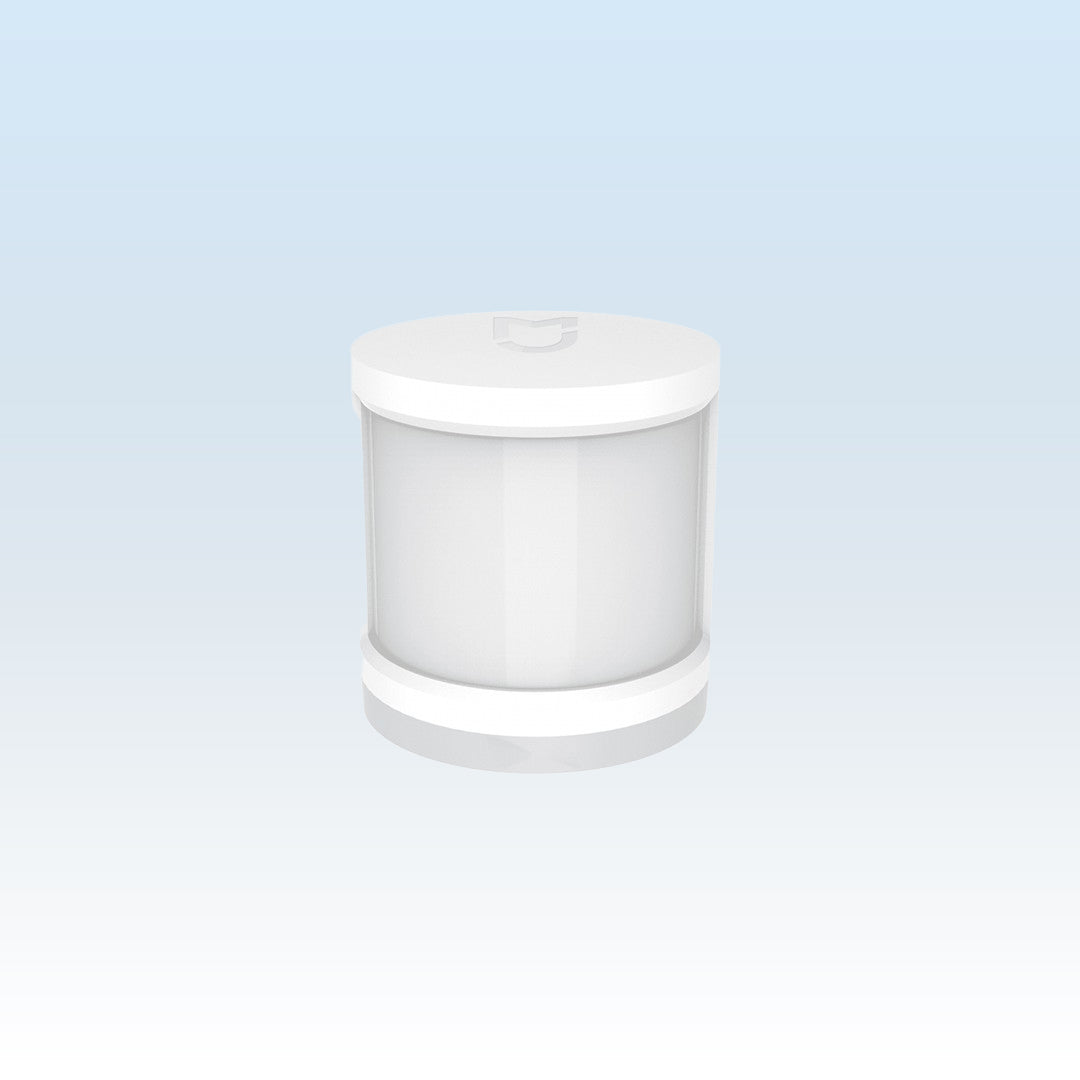

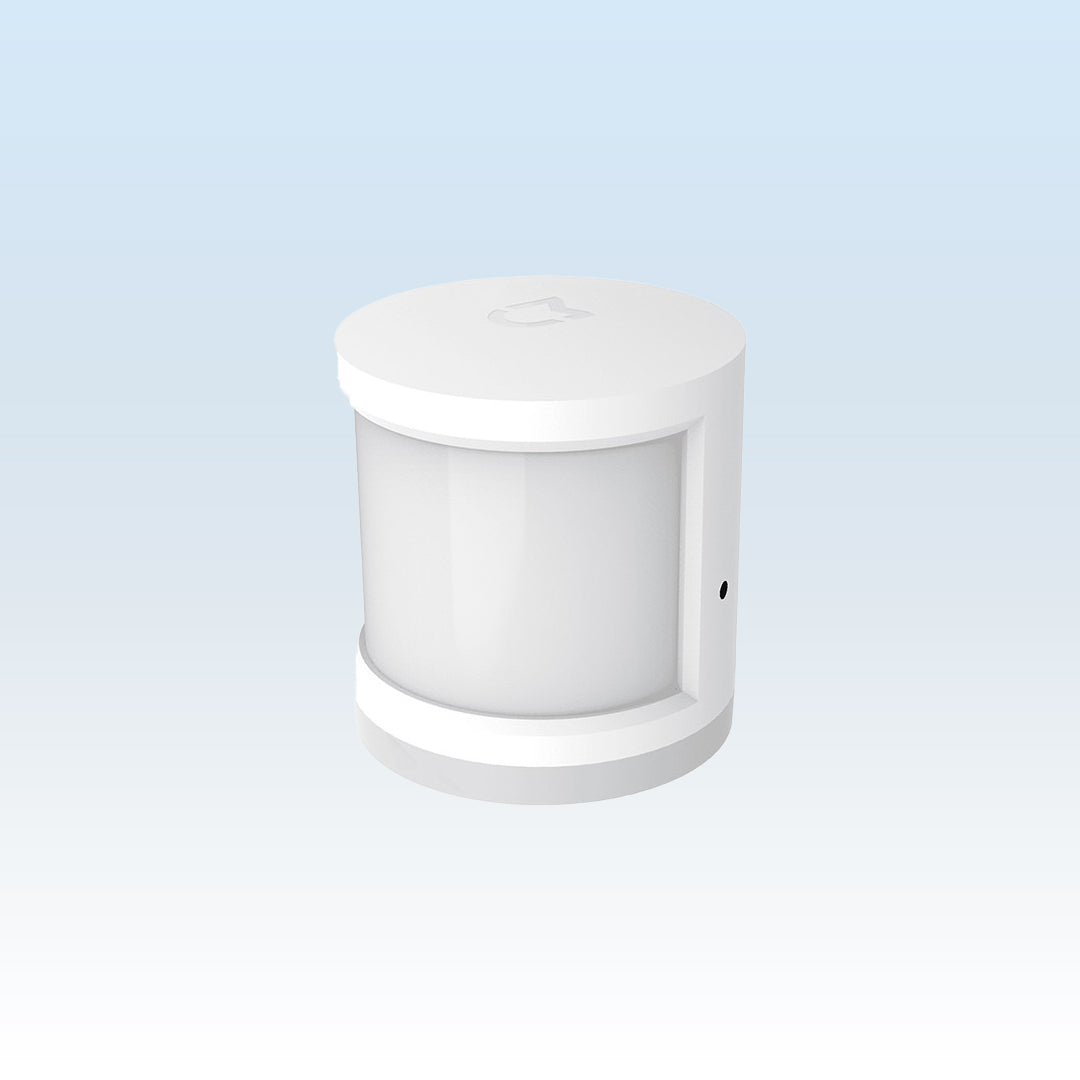

Product Overview
Product Overview
Dimensions & Weight: φ32.5 × 69.5 mm, ≈ 19 g
Usage Tips
- Install within ~10 m of a Bluetooth-gateway device (required for functionality).
- Set up automations based on both motion and light—for example, trigger lighting only when it’s dark.
- Use the “high sensitivity” mode to detect micro-movements like hand waves or leaning.
- Placed in low-traffic areas? Battery may last longer than 3 years depending on triggers.
- Clean the lens periodically—dust buildup may affect performance.
