Specification | Details |
---|---|
Model | Mi Router 4A Giga Version (DVB4305GL) |
Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac (Dual‑band) |
Max Wireless Speed | ~1,167 Mbps (2.4 GHz: 300 Mbps; 5 GHz: 867 Mbps) |
Processor | Mediatek MT7621A dual-core 880 MHz |
Memory | 128 MB RAM, 16 MB Flash |
Ethernet Ports | 1× gigabit WAN + 2× gigabit LAN (Auto MDI/MDIX) |
Antennas | 4 external omni-directional (5 dBi for 2.4 GHz, 6 dBi for 5 GHz) |
Coverage Area | Up to ~80 m² |
Device Capacity | Up to 64 clients |
Security | WPA‑PSK/WPA2‑PSK, SSID hide, access control |
Management | Mi Wi‑Fi app or browser UI |
Cooling | Passive heat dissipation via metal substrate and vents |
Dimensions | Approx. 202 × 133 × 173 mm |
Weight | Approx. 300 g |
Product Overview

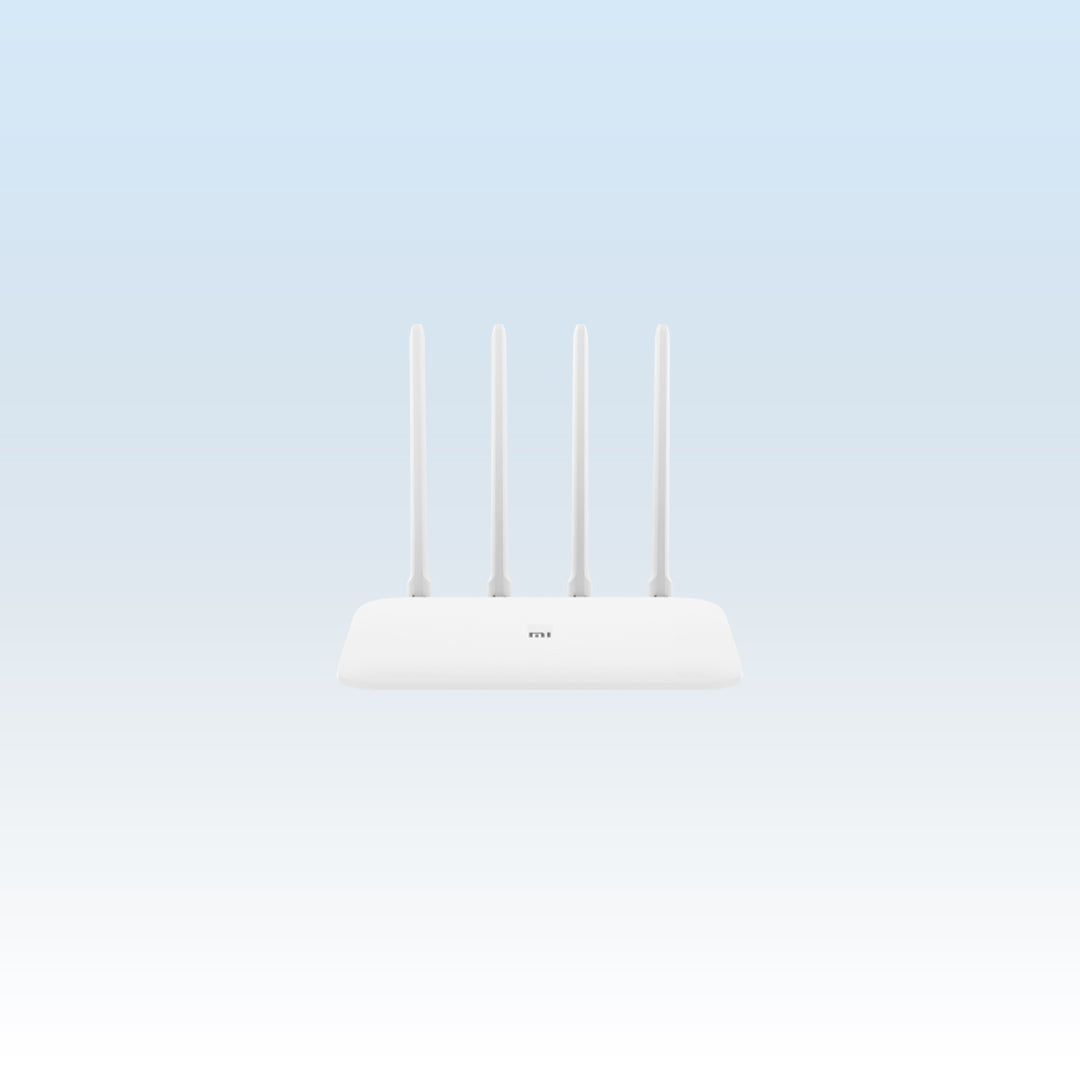

The Xiaomi Mi Router 4A Giga Version combines gigabit wired speeds and dual-band Wi‑Fi into a compact, external-antenna design. It works well for small to medium homes seeking reliable connection for devices like smart TVs, laptops, and streaming clients.
Performance & Throughput
- Wired LAN reaches ~940 Mbps performance via gigabit ports
- Wi‑Fi 5 on 5 GHz band provides solid in-room speeds (~180–200 Mbps real-world), though speeds may drop over multiple walls
Smart Home Control
- Smart Connect consolidates SSIDs and auto-switches frequency bands
- Mi Wi‑Fi app supports guest network, parental control, and device alerts
Limitations
- Wi‑Fi range is adequate but not exceptional; multiple walls degrade performance
- No USB port and setup lacks wall-mount option
- Stock firmware sometimes results in high latency or reduced wireless speed
Possible Enhancements
- Flashing community firmware like OpenWRT with hardware flow‑offload can boost stable gigabit performance
- Use smart cooling placement to mitigate heat buildup in prolonged use
Box Contents
- Mi Router 4A Giga Version unit
- Power adapter (12V ⎓ 1 A)
- User manual and warranty card
